Special lubricants for open gears
| Product name | POLAR 700 OG | POLAR 1500 OG | POLAR 3500 OG 0 | POLAR ULTRA 5М | ||
|---|---|---|---|---|---|---|
| Thickener | Special lithium soap | Special lithium soap |
Alumnium complex soap |
Calcium sufonate complex soap |
||
| NLGI | 1 | 1 | 0 | 0 | 1 | 2 |
|
Welding load, N |
6800 | 6800 | 6800 | 6200 | 6200 | 6200 |
| Base oil viscosity at 40 °С, mm2/s | 700 | 1500 | 3500 | 150 | 150 | 150 |
| Operating temperature range, °С | -50...+120 |
-30...+140 |
-30...+120 |
-45...+140 |
-35...+140 | -30...+140 |
| Basic characteristics | Special liquid lubricant for swing bearings of excavators based on special high-viscosity adhesive oil and solid lubricants, meets the requirements of OEM - P&H 520. Recommended for operating temperature range from -55 to +10 °С. |
Special lubricant for open gears. Capable for pumping via centralized lubrication within a wide temperature range from -35°С to +140°С. |
Special lubricant for dragline excavators and shovels, based on a special high-viscosity mineral oil and aluminum complex soap with solid lubricant content. |
Special grease based on calcium sulfonate complex soap and naphthenic oils for roller and slde bearings of vehicles and industrial units. Recommended for the lubrication of units, working under high loads and relative speeds. |
||
| Conformity to the performance property category |
DIN 51502 OGX1K-50 |
DIN 51502 OGF1K-35 |
DIN 51502 OGF0N-10 |
DIN 51502 KPF(NLGI)P-45 ISO 6743 ISO-L-XCCEA2 |
||

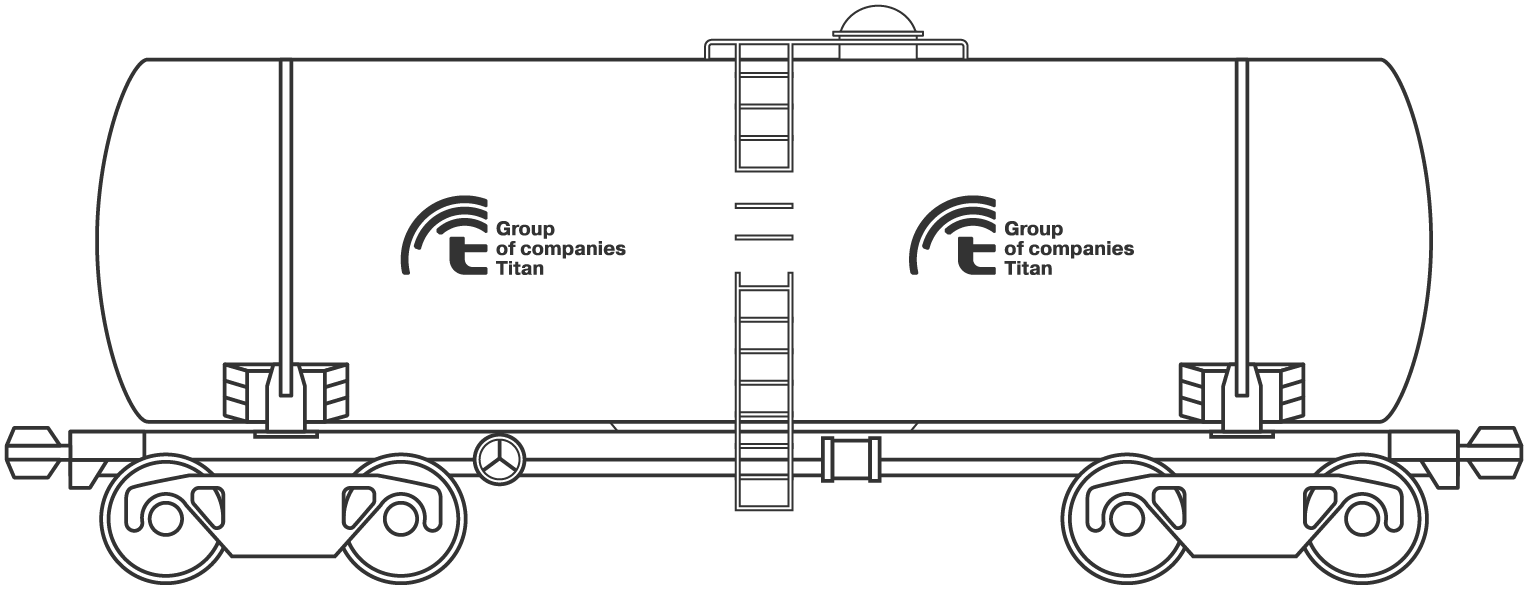

Types of Transportation
